Revolutionizing Plastic Gear Production: A Strategic Shift from Machining to Injection Molding

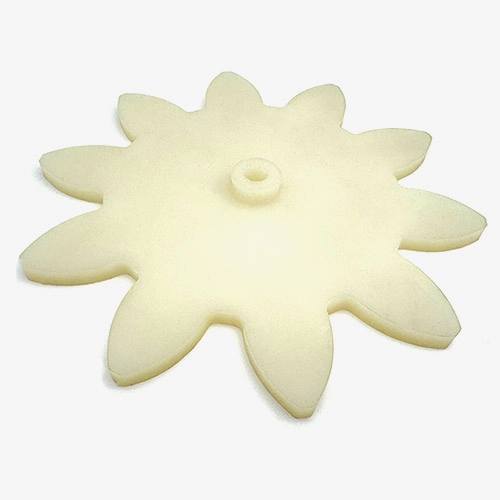

In the dynamic landscape of manufacturing, adapting to evolving client needs is crucial for maintaining competitiveness. A recent project involving a 10mm-thick plastic gear exemplifies our commitment to innovative solutions. Initially, the gear was produced through machining from plastic plates. However, with a surge in orders, the client sought a transition to injection molding, aiming to slash production costs and enhance efficiency. Our engineering team rose to the challenge, meticulously devising a comprehensive strategy to ensure a seamless transformation.

▸ The first hurdle stemmed from the gear's substantial thickness.

In injection molding, such thicknesses often lead to critical issues. Surface shrinkage could mar the gear's precision, while internal voids and air bubbles might compromise its structural integrity, ultimately affecting functionality and assembly.

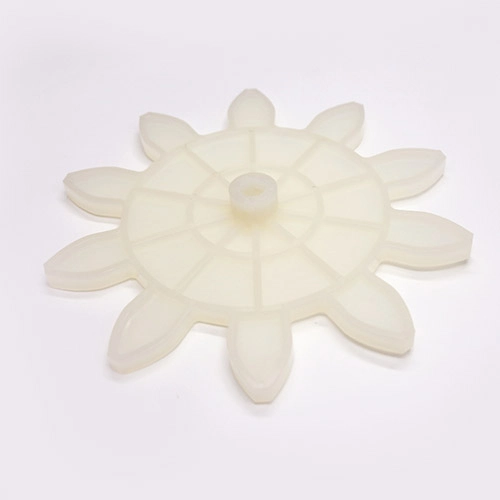

To address this, our engineers proposed an ingenious internal design modification. Without altering the gear's external profile, they integrated a network of reinforcing ribs. Crucially, each rib was engineered to maintain uniform thickness.

This design choice was pivotal as it facilitated consistent melt flow during the injection molding process. By ensuring even distribution of plastic material, we could safeguard the gear's mechanical properties, such as strength and rotational accuracy.

▸ The second key element of our solution centered around the mold's gating system.

Recognizing the importance of sufficient material flow for a thick-walled component, we recommended a strategic change from a standard gating setup to a large-diameter sprue gate, commonly referred to as a "big gate" or "hot sprue" system.

This modification guaranteed an ample supply of molten plastic, enabling complete and rapid filling of the mold cavity. The increased injection volume minimized the risk of short shots, where the plastic fails to reach all parts of the mold, and ensured a more stable and reliable production process.

▸ Before presenting our proposal to the client, we conducted extensive simulations and trials.

Advanced computer-aided engineering (CAE) software was employed to model the injection molding process, predicting potential flow patterns, temperature distribution, and areas of concern. Physical prototypes were also produced and rigorously tested for dimensional accuracy, mechanical performance, and compatibility with mating components.

The comprehensive validation process provided concrete evidence of the viability and superiority of our proposed solution.

▸ Impressed by our thorough analysis and positive test results, the client readily approved the optimized design.

Our manufacturing team then executed the production with precision. The transition to injection molding proved to be a resounding success.

The final product not only retained the same high level of performance as its machined counterpart but also offered significant improvements. Production cycle times were drastically reduced, allowing for a substantial increase in output to meet the growing demand.

Moreover, the streamlined injection molding process led to notable cost savings, primarily through reduced material waste and lower labor requirements associated with machining.

Benefits and Conclusion

This project stands as a testament to our expertise in bridging the gap between client expectations and manufacturing realities. By leveraging innovative design strategies, advanced simulation tools, and a deep understanding of injection molding principles, we were able to transform a challenging request into a practical, cost-effective solution. It highlights our ability to navigate complex engineering problems and deliver value-added services that not only meet but exceed client requirements.
