Innovative Solution: Overcoming Assembly Challenges Caused by Incorrect Drawings

In the manufacturing process, unexpected issues can arise due to various factors, and one such situation occurred when a client encountered significant problems during the installation of an O-ring on our product. This article details how our team devised an innovative solution to resolve the issue without the need for costly rework.

▸Problem Identification

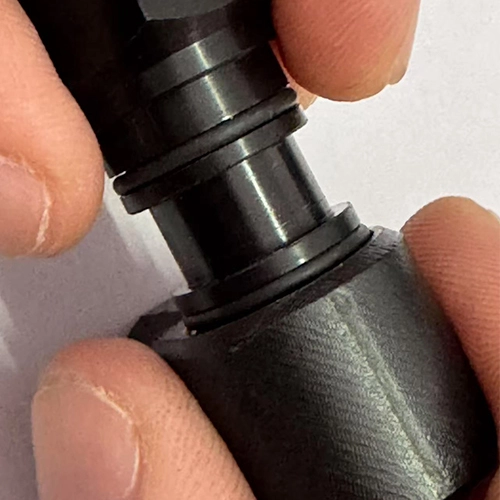

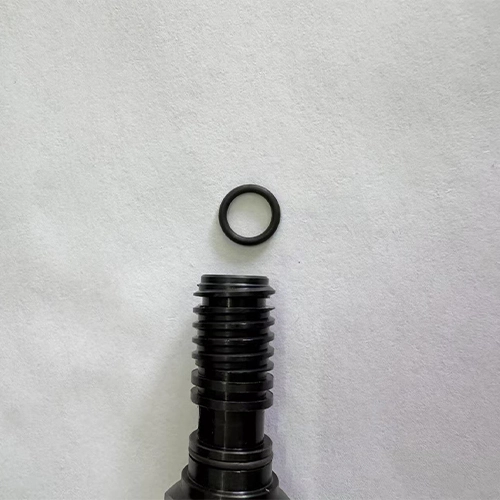

Our client reported that installing an 8*1.5mm O-ring on the product was met with excessive resistance, making it impossible to complete the installation smoothly. Upon investigation, we discovered that the root cause of this problem was an error in the client's design drawings, which specified the incorrect O-ring size.

▸Initial Assessment and Constraints

Upon receiving the client's request for rework, our company conducted a comprehensive evaluation of the situation. We found that reworking the product would result in noticeable machining marks on the surface, significantly affecting its appearance.

Additionally, the dimensional tolerances of the product would be severely impacted, potentially leading to further quality issues. Our engineers determined that traditional rework methods were not viable due to these constraints, necessitating an alternative solution.

▸Engineering Analysis and Alternative Solution

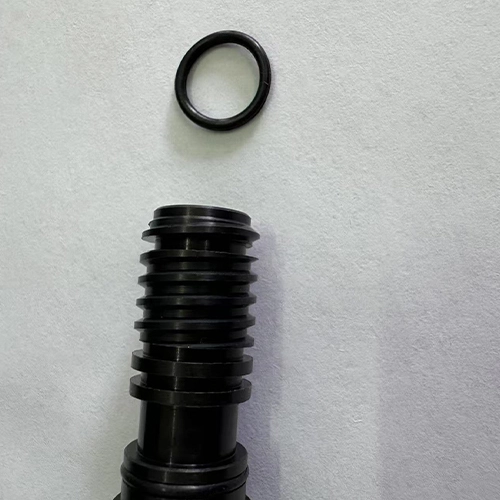

To address the problem, our engineering team carried out in-depth assessments and calculations. Through meticulous analysis, they identified a potential solution: replacing the original 8*1.5mm O-ring with a different specification, 10*1.5mm. This alternative size was carefully selected based on its compatibility with the existing product structure and its potential to reduce the installation resistance while maintaining the required sealing performance.

▸Testing and Validation

After determining the alternative O-ring size, we immediately conducted a series of tests. The product, fitted with the new 10*1.5mm O-ring, was subjected to rigorous installation trials and functional tests. The results were highly satisfactory - the installation process became smooth, and the product with the new O-ring passed all of the client's performance tests without any issues.

Benefits and Conclusion

This innovative solution not only resolved the immediate assembly problem but also brought several significant benefits. By avoiding the rework process, we saved substantial man-hours, improving production efficiency. Moreover, it helped the client cut down on product costs, as rework would have incurred additional expenses for both parties. This case exemplifies our commitment to providing practical and cost-effective solutions to our clients, even in the face of unexpected challenges. It also underscores the importance of thorough engineering analysis and creative problem-solving in the manufacturing industry.
