Insert Molding & Overmolding: The Twin Engines of Product Functionality and Ergonomics

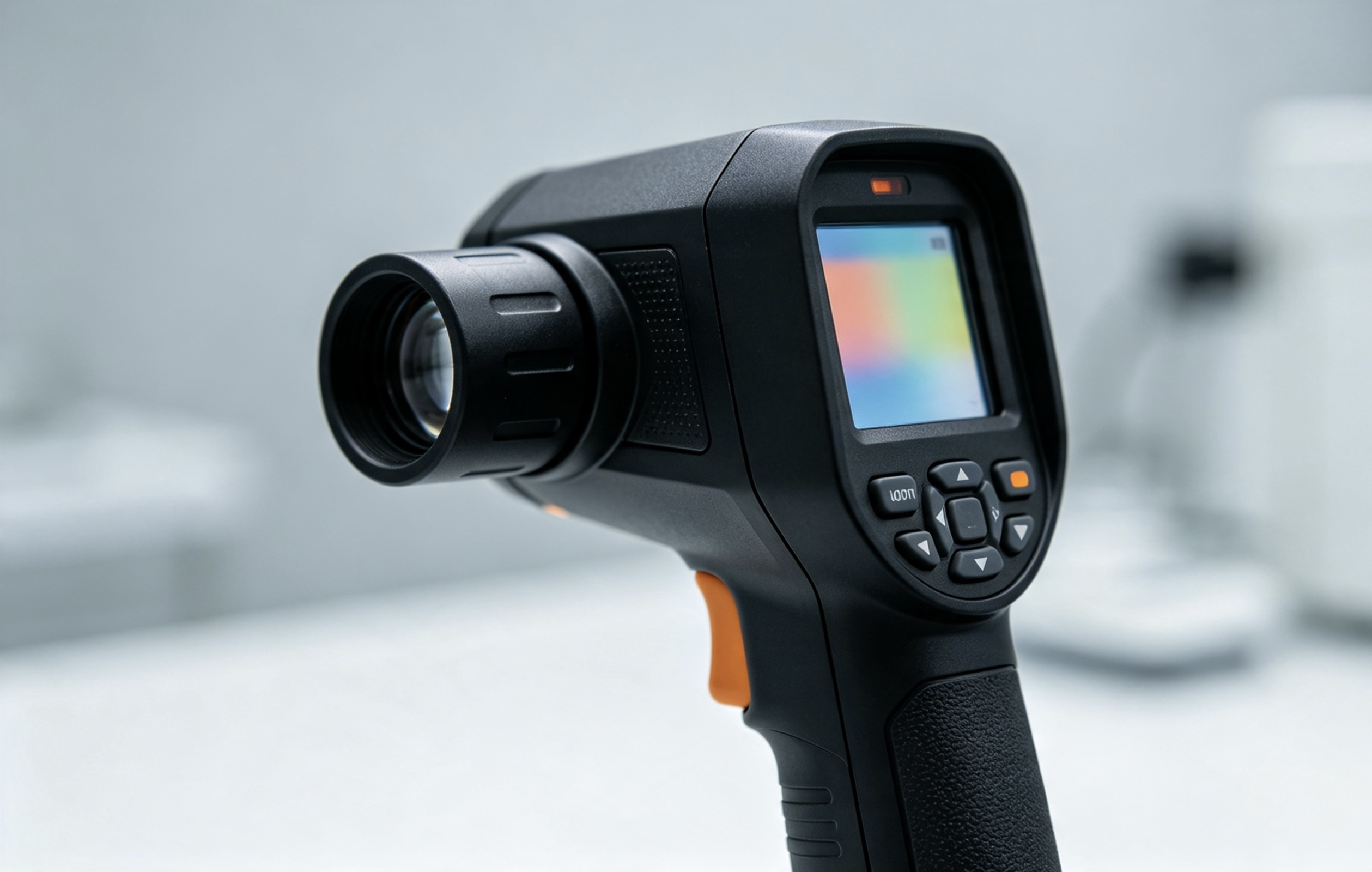

Far-infrared monitor technology for plastic extrusion enhances precision in temperature control critical to injection molding. Bost details practical solutions for integrating infrared temperature monitors for plastics into IR optics and enclosures, improving product quality and process reliability.

Modern hardware demands more than just structural integrity; it requires IP68 waterproof sealing, impact resistance, and ergonomic soft-touch grips. Traditional mechanical fasteners, O-rings, and industrial adhesives not only inflate assembly costs but often fail in harsh environments. Insert Molding and Overmolding (2K Molding) are the definitive manufacturing solutions to these challenges.

As an expert one-stop injection molding partner, Guangzhou Bost (Bost) operates advanced two-shot molding presses and automated robotic systems to seamlessly integrate dissimilar materials into a single, robust component.

---

1. The Technologies Explained: What is the Difference?

While both processes involve combining multiple materials, their engineering applications are distinct:

1. Insert Molding: Merging Plastic with Metal Strength
   Before the mold closes, an automated robotic end-effector places pre-machined metal components (such as threaded brass inserts, stainless steel stamped lead frames, or magnets) into the mold cavity. The plastic resin is then injected, fully encapsulating the insert.

   • The Advantage: Eliminates secondary operations like heat-staking or ultrasonic inserting, while drastically increasing thread pull-out strength and structural rigidity.

2. Overmolding / 2K Molding: The Synergy of Rigid and Soft
   A rigid plastic substrate (like PC or ABS) is molded first. Then, in the same press (2-shot molding) or a secondary mold, a soft elastomer (like TPE, TPU, or Liquid Silicone Rubber) is injected directly over or around the rigid substrate.

   • The Advantage: Enables seamless waterproof gaskets for consumer electronics, slip-resistant grips for medical devices, and shock-absorbing bumpers for rugged industrial tools.

2. Engineering Challenges & Bost's Solutions

Successfully marrying disparate materials under extreme temperatures and pressures requires deep process control:

• Achieving True Chemical Bonding: If the soft overmold and rigid substrate are chemically incompatible, the soft layer will peel or delaminate. Bost's material engineers select highly compatible resin pairings (e.g., PC with TPU) and optimize melt temperatures to achieve a true molecular chemical bond without the use of toxic primers or adhesives.

• Preventing Insert Displacement: Injection pressures can easily dislodge metal inserts during the fill phase, leading to crushed molds or defective parts. We utilize precision automated robotic loading combined with strategic magnetic or mechanical locating pins inside the mold cavity to ensure every insert remains perfectly stationary under high pressure.

Discover how Bost can enhance your product's durability and user experience through advanced multi-material molding at www.gz-bost.com.
