From Blueprint to Deep Sea: DFM Design and Injection Molding Guide for Underwater Camera Waterproof Housings from a B2B Perspective

In both consumer-grade electronics and professional marine exploration equipment, an Underwater camera is undoubtedly one of the most mechanically challenging pieces of hardware to engineer. When the device dives into the deep blue, even a gap as thin as a human hair can turn into a devastating disaster under the crushing force of dozens of atmospheres of pressure.

As the senior manufacturing team at Guangzhou Bost Plastic Products Co., Ltd. (BOST), we have evaluated countless 3D drawings of underwater equipment over the past decade. We have found that many highly innovative R&D teams often lack a healthy respect for the physical limits of industrial manufacturing during the design phase. They toss their blueprints directly to inexperienced contract manufacturers, ultimately encountering a disastrous "leakage crisis" during the mass production stage.

An excellent hardware pitfall avoidance guide should not stop at theory. Today, we will strip away the flashy marketing rhetoric and, starting from the foundational logic of DFM (Design for Manufacturing) and mold design, deeply analyze how top-tier precision injection molding technology can endow an Underwater camera with true deep-sea survival capabilities.

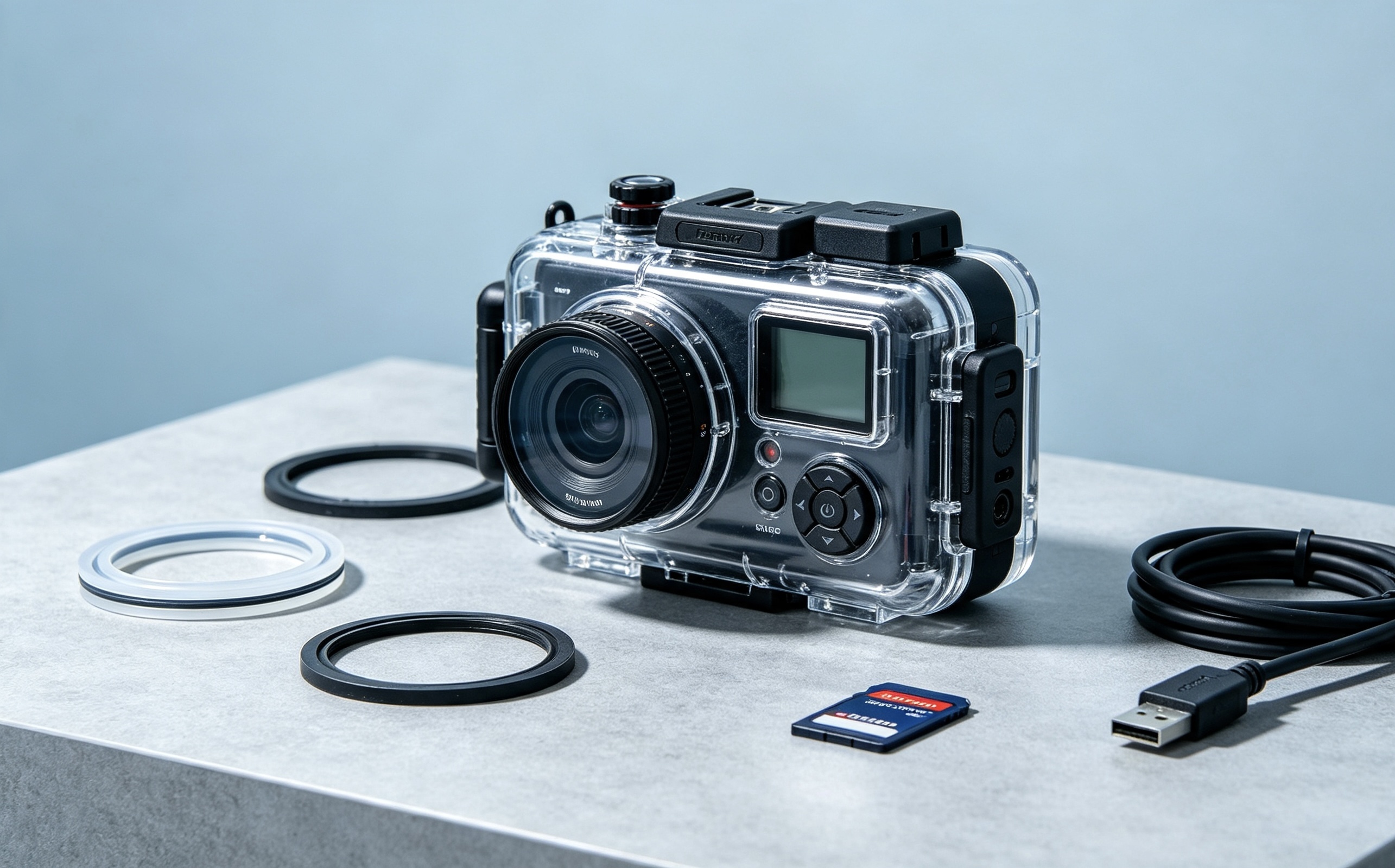

Why Does Your Underwater Camera Always Face "Leakage Crises" During Mass Production?

The cruelty of hardware manufacturing lies in the fact that the success of a prototype does not guarantee the victory of mass production. Many teams successfully pass waterproof tests during CNC (Computer Numerical Control) prototype testing, but once they enter the tooling and injection molding process phase, the defect rate skyrockets. This is usually attributed to the following overlooked structural hidden dangers:

1. Fatal Shrinkage and Uneven Wall Thickness

Underwater, the housing of an Underwater camera needs to resist omnidirectional compression. To increase strength, many designers instinctively thicken the shell. However, in the world of plastic injection molding, "thicker is better" is an absolute fallacy.
When the wall thickness of the shell is uneven, or locally too thick, the cooling and shrinkage rates of the plastic inside the mold will vary dramatically. This uneven shrinkage causes depressions (sink marks) on the product's surface or even forms microscopic vacuum voids internally. If these defects happen to appear on the contact surface of the O-ring (sealing ring), water will silently seep into the camera's motherboard as pressure increases.

2. Ignoring the Deep-Sea Lethality of Weld Lines

When molten plastic flows within the mold cavity, separates around an obstacle (such as a button hole or lens opening), and merges again, a weld line is formed. On ordinary electronic products, this might just be a cosmetic flaw; but on an Underwater camera, the weld line is the most fragile "Achilles' heel" of the entire housing. Under deep-sea high pressure, a minute stress concentration can cause the shell to fracture directly along the weld line.

Conquering Deep Water Barriers: Core Precision Injection Molding and Mold Design Strategies

To avoid the aforementioned minefields, rich injection molding experience must be front-loaded into product design before the mold drawings are frozen. We typically utilize the following advanced processes to elevate the waterproof rating and structural integrity of an Underwater camera.

Insert Molding: Strengthening the Bond Between Metal and Plastic

Stress-bearing parts of an underwater camera, such as the tripod mount or external fill-light brackets, are highly prone to thread stripping or cracking under repeated disassembly or high pressure if pure plastic threads are used.
We employ the insert molding process, pre-placing high-strength brass or stainless steel nuts into the mold, allowing the high-temperature plastic to mold directly around the metal components. This requires extremely high mold design precision and robotic positioning capabilities to ensure the plastic surrounding the metal insert does not crack due to internal stress, thereby providing a rock-solid external mounting point for the Underwater camera.

Two-Shot / Overmolding: The Ultimate Solution to Eliminate Assembly Gaps

Traditional waterproof designs rely on manual installation of rubber rings, which not only increases assembly time but is also prone to leaking due to the twisting or aging of the rubber ring.
For top-tier Underwater camera models, we recommend using the two-shot injection molding process. The first shot injects the highly rigid PC or glass-fiber nylon main housing. The mold then rotates, and the second shot directly injects a soft TPE/TPU elastomer into the sealing groove or button area of the housing. The hard plastic and soft elastomer achieve chemical bonding at the molecular level, completely eliminating the gap risks associated with physical assembly and elevating waterproof reliability to a new height.

Comparison Table of Common Underwater Camera Sealing Designs and Injection Molding Processes

To help your engineering team make better technical selections, we have summarized current mainstream waterproof sealing designs and their corresponding process requirements:
