How Mold Design Can Make or Break Your Custom Rubber Tube Project: Insights from the Precision Injection Molding Frontline

Custom rubber tube projects demand precise mold design to ensure quality and performance. Bost reveals how mold engineering impacts production efficiency and product integrity, guiding you to make informed decisions when choosing a custom rubber tubing manufacturer.

In B2B manufacturing, a frustratingly common scenario unfolds: You’ve invested heavily in R&D for your custom rubber tube project. The blueprint is flawless, the material specification is precise. Yet, when the samples arrive, they have dimensional deviations, flash on the surface, or fail prematurely during durability testing. Where is the problem? Nine times out of ten, the root cause lies in mold design.

As a manufacturer deeply entrenched in precision injection molding and engineering plastics for over 20 years, Bost's engineering team has tackled thousands of complex cases involving custom rubber tubes. We've learned that mold design is far more than just "making a tool." It fundamentally dictates the upper limit of product precision, the lower limit of cost, and the consistency of mass production. This article shares key insights from our practical experience in mold design and precision injection molding, helping you, as a buyer of custom rubber tubes or related plastic components, accurately assess a supplier's technical capability and avoid potential pitfalls.

H2: Mold Design: The First Step in the "Genetic Engineering" of Your Custom Rubber Tube
If you view the final product as a living organism, then the mold is its "genetic code." This code determines the organism's basic traits, and likewise, mold design fundamentally dictates the dimensional accuracy, surface quality, physical properties, and long-term reliability of your custom rubber tube.

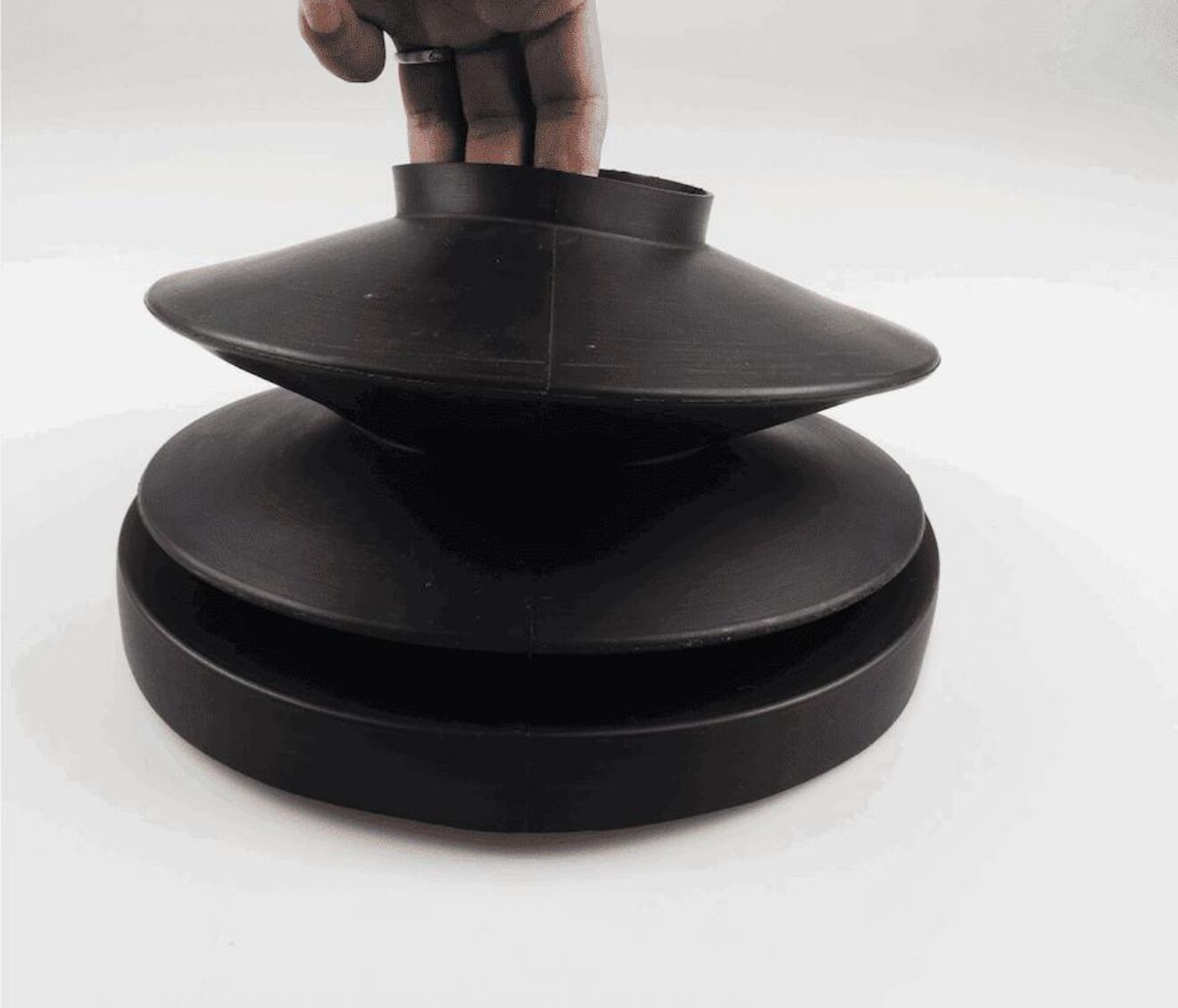

H3: Parting Line Design: The Starting Point for Aesthetics and Sealing
The parting line is the interface on the mold where the two halves separate to eject the part. For a custom rubber tube, particularly those used in hydraulic or pneumatic systems, the positioning of the parting line is critical.

Poor Design: Placing the parting line on a critical sealing surface or an aesthetic area inevitably leads to flash (excess material), increasing post-processing costs and potentially compromising the seal.

Best Practice: Experienced mold design engineers skillfully position the parting line on non-functional areas or along the edges and corners of the product. This way, even minimal flash is easily removed without affecting core performance. At Bost, we optimize this during our DFM analysis before tooling is cut, ensuring your custom rubber tube is both visually appealing and functionally reliable.

H3: Gate and Runner Systems: The Art of Material Flow
The gate is the channel through which molten plastic enters the mold cavity. For engineering plastics with varying flow characteristics (like PEEK, PEI), the gate's location, shape, and size directly impact the success of precision injection molding.

For long tubular parts, we often employ multi-point gating or submarine gates to ensure uniform cavity filling, preventing internal stress, warpage, or weld lines caused by flow imbalance.

Runner system design directly impacts material utilization. At Bost, we focus on designing hot runner systems, which significantly reduce material waste. For expensive specialty engineering plastics, this translates directly into substantial cost savings, making your custom rubber tube project more economical without compromising performance.

H2: From Design to Mass Production: How Mold Design Impacts Your Cost and Delivery
Many clients, when selecting a custom rubber tube supplier, focus only on the unit price, overlooking the deep impact of mold design on the Total Cost of Ownership (TCO). Here are two common misconceptions.

H3: Myth 1: A More Complex Mold Equals Higher Quality
Not necessarily. Excellent mold design strives for "simplicity and efficiency." Complex slide and lifter structures not only increase mold manufacturing costs and lead times but also raise maintenance difficulty and failure rates over time.

Our Practice: At Bost, through DFM analysis and collaboration with clients, we often simplify product structures to make them easier to injection mold. For example, slightly increasing the draft angle or optimizing wall thickness transitions can significantly reduce mold complexity. This shortens delivery lead times (we've achieved 72-hour emergency deliveries) and lowers long-term maintenance costs.

H3: Myth 2: The Longer the Mold Life, The Better
Mold lifespan should match your product's life cycle. For custom rubber tube projects involving small batches and high variety, excessively pursuing a super-long mold life (e.g., over a million cycles) is uneconomical.

Our Strategy: Based on your estimated order volume and product iteration plan, we recommend the most suitable mold steel and manufacturing processes. For prototype or low-volume orders, we can even utilize rapid tooling solutions to deliver qualified samples in minimal time, helping you validate your design quickly. This perfectly aligns with our service philosophy of seamless transition from prototype to production (from 1 piece to 100,000+ pieces) .

H2: Beyond Rubber: The Infinite Possibilities Precision Injection Molding Brings to Custom Tubing
When we apply precision injection molding thinking to your required custom rubber tube, we essentially open a new world of material selection. Many clients are surprised to discover that tubing made from specialty engineering plastics (like PTFE, PFA, PVDF) far surpasses traditional rubber in the following aspects:

High-Temperature Resistance: Can operate continuously at 260°C.

Chemical Resistance: Resists attack from nearly all chemical media.

Dimensional Stability: Maintains high precision even under fluctuating temperature and humidity.

The foundation for achieving all this is the perfect synergy of sophisticated mold design and injection molding processes.

Key Process Comparison: Traditional Rubber vs. Precision Injection Molded Tubing
Characteristic    Traditional Vulcanized Rubber Tube    Precision Injection Molded Engineering Plastic Tube
Material Fluidity    Poor, relies on heat and pressure.    Controllable, optimized via gate/runner for perfect filling.
Dimensional Tolerance    Wider, typically ±0.1mm or more.    Achievable ±0.02mm, with high repeatability.
Insert Molding Capability    Difficult, often requires secondary bonding.    Easily enables precise over-molding of metal or plastic inserts.
Automation Level    Low, relies heavily on manual labor.    High, suitable for fully automated production ensuring consistency.
Scrap Recycling    Difficult, vulcanization is irreversible.    Simple, sprue/runner material can be reground and recycled in controlled ratios, more environmentally friendly.
H2: Choose Bost: Give Your Custom Rubber Tube a Winning Start
At Bost, we offer more than just processing services. We provide a one-stop, worry-free experience encompassing Material Expert Guidance, DFM Analysis, and Precision Injection Molding. Our R&D team (over 80 members) is dedicated to intervening at the very beginning of your project. Through superior mold design, we clear all potential obstacles for your custom rubber tube project.

We deeply understand that behind every project is your need for rapid market response and an unwavering pursuit of product quality. Therefore, we commit to:

Transparency: Real-time project progress updates.

Reliability: 98% on-time delivery rate.

Professionalism: Zero middlemen, factory-direct pricing for optimal cost.

Let Our Mold Design Experts Safeguard Your Project
A perfect custom rubber tube starts with superior mold design. Don't let the wrong mold become a stumbling block to your product's success. Whether you need high-performance PEEK tubing or custom tubes with special flame-retardant requirements, Bost has the capability to help you succeed.

[Visit https://www.gz-bost.com now to submit your project requirements and get a free DFM analysis and professional mold design proposal] . Our engineers will contact you within 24 hours to discuss how to realize your design blueprint at the optimal cost.
